Tip: MJPEG or H.264, which one do I choose? Typically older cameras are MJPEG cameras where newer ones have H.264 support. Consult your camera's documentation. Some support both.
There are 3 general steps required to setup an MJPEG IP camera.
- Camera Info. Select your camera type (in this case, Generic MJPEG).
- Network. This is where you give your cloud platform the camera’s login credentials, IP address and port. It requires port forwarding to work with IP cameras.
- Settings. Some final camera settings, including obtaining FTP credentials from your portal that need to be entered into the camera’s FTP settings area.
1. Camera Info.
This step allows you to select the type of camera you wish to setup, then give it a name (e.g. “Front Door Camera”). When setting up an IP camera, select Generic MJPEG as the type (note: Axis and Foscam have their own, more automated setup steps).
If you have not setup the camera on your network with port forwarding, please STOP HERE. Read our Port Forwarding Guide for instructions on this before proceeding further.
It's also highly recommended you setup a static IP address for your camera with a properly configured DNS. This will ensure your camera always has the same IP address on your network should the router reboot for any reason. Read our Static IP & DNS Setup Guide.

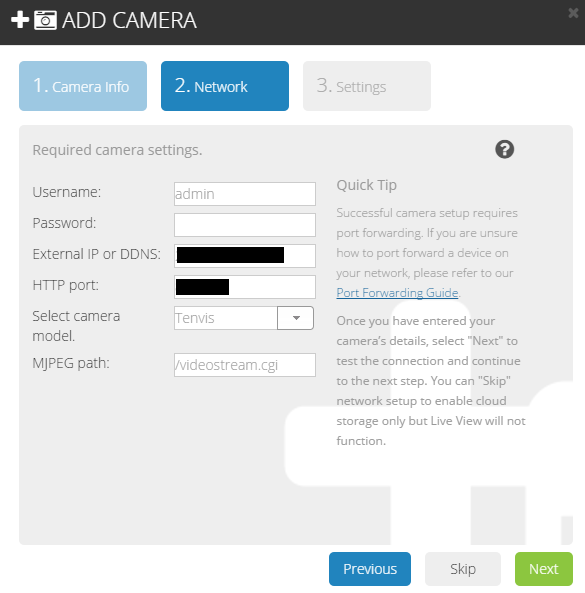

Once you’ve done this, complete the rest of the form.
- The username and password are the camera’s login credentials.
- The external IP will already be filled in with your current IP but you should verify it is correct - an easy way to accomplish this is to Google “my IP”. A better option is to register with a dynamic DNS provider such as DynDNS and enter the domain name. Some details can be found here. (Tip: Many cameras already provide a free DDNS service with the purchase of your camera. Check first!)
- Port is the HTTP port you assigned to this camera.
- Finally select your camera to identify a "camera path". If you selected Generic MJPEG, start typing your camera’s model (e.g. D-Link). This will auto-complete based on the supported cameras. You can fill this in manually, search for MJPEG stream in your camera documentation. If you don't see your camera name in the camera list or you are unsure of the path to use then contact support.
Tip: The MJPEG path will look something like this: /videostream.cgi or /channel1. Your documentation might show a full path of the IP and port, but you only want to enter the path after that. For example if your documentation says: http://xx.xx.xx.xx:80/videostream.cgi, you only want to enter the path of: /videostream.cgi into the path field.

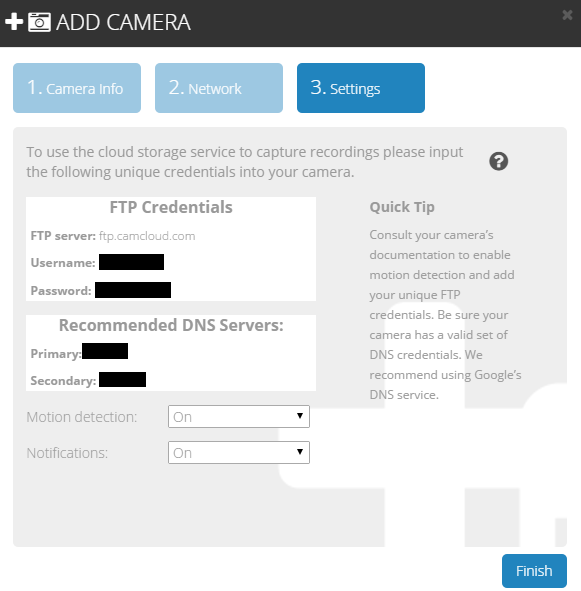

Save the FTP server name, username, and password, you'll need it for the next step!
Once you complete this form select “Next”. the platform will run a network test to ensure we can connect to your camera before proceeding to Step 3. If it goes through it means you were successful at pinging the camera which means our Network Setup is complete.
Now you’re ready to use the Live View with your Generic MJPEG camera.
Once your camera is setup on your network there are a few remaining settings required in order to add cloud storage of your motion events.
First, configure your camera to send motion events. This varies per camera but typically involves three steps:

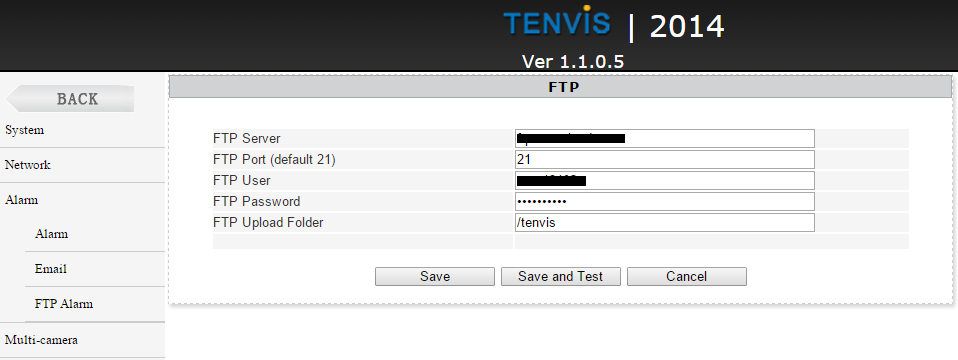

- Input FTP credentials. Your camera will have a place to enter the FTP credentials. Take the credentials provided to you when you created the camera. Enter the address, your credentials, port (21) and make sure to select passive mode if you have that option.
Tip: Some cameras ask for you to enter a path or upload folder. Typically this can be left empty but some cameras require this option to be filled in. In that case enter anything like “videos” or forward slash (/).
- Enable motion detection - most cameras simply have a checkmark or something that says: yes, please send motion events. Here you will create "Motion events" or "Action" or "Snapshot" to trigger an event to that FTP. It varies per camera. You might also have something called "Interval" which must be set to specify the number of seconds between motion events, keep the number low.
- Create motion detection area. Some cameras require you to draw the areas of where you want it to detect motion. Many cameras don’t have this option but if you do you typically find it under the motion detection options.
Once you’ve added the supplied FTP credentials to your camera’s configuration, you’re ready to start using your IP camera.
